144 & 432 MHz High IIP3 PA3BIY LNAs

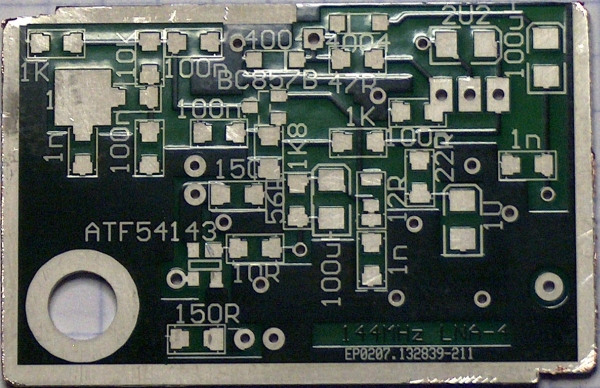

PCB Rev.4 notched at corners ready for mounting in box

PA3BIY 144/432 LNA PCB/ATF54143 ordering.

All Kits now gone, no more available - sorry!

Please do not send money - I won't return it and I cannot send you Kits!

History:

When I first saw the article in Dubus  1/2002, I was very impressed with the data and quality of the construction. I managed to get hold of one of PA3BIY, Peter's PCBs, and built an LNA more or less from his description, although it only got an aluminium house from the junkbox to live in. To my great surprise it measured as well as, or better, in all respects as the published figures. After a few months of usage by me, I needed one more, and as there was considerable interest from members in my local ARC to build their own copies of this construction, a minor redesign was planned. Based on my experience, I wanted a somewhat smaller PCB lay-out that would fit in a tin-plated "RF-Tight" standard enclosure 55x37x30mm, instead of the superior but rather bulky and expensive milled block of aluminium that Peter used.

Steen, OZ3SW undertook the PCB redesign, and 50 were made professionally, and kitted out for members to build. It was a roaring success, with the exception of a few soldering problems and a couple of killed ATFs all copies worked and exceeded original specifications. The same Steen decided that the design ought to work on 432Mhz with just a few changes, and built a quick prototype to prove this. It turned out to have excellent figures of merit, and as expected spurred a new round of demand for kits, which were then fulfilled in short order. This second batch was also quickly sold out, and has been out of stock for more than a year now (10-2006).

The two versions with the 144MHz on top and the 432MHz LNA at the bottom.

The large black component in the 144MHz version is a MOV in an attempt to combat possible lightning induced failure.





The project as it stands:

 Data measured with calibrated professional equipment:

(Typical):	144MHz	432MHz
Gain	22dB	16dB
Input Return Loss	>20dB	39dB
IIP3 (Input Intercept Point)	>2dB	>2dB
Current Consumption	60mA	60mA
Noise Figure	0.30dB1	0.38dB1

¹ ±0.2dB!!!

A few pundits have declared that these data are theoretically impossible to achieve with this design, to which i can only comment that: "If the theory doesn't fit repeatedly and independently observed data, then the theory is clearly wrong, and needs to be replaced"

Note: R13 and C3 are not used in our version, and some other non-critical components have different values!

You can get a high-resolution version i PDF format by clicking on the picture above!



From PA3BIY, Peter: "I forgot something that is worth adding. Over the past years I have had some complaints about the sensitivity of the LNA for Static and (too much) rf power. I have come up with a simple solution, that does not degrade the NF significantly (0.05 dB or less) and has minor influence on the IP3 behaviour: 2 PIN diodes across the input. Normal fast switching diodes will obviously ruin the NF and IP3 properties, but PIN diodes act like a variable resistor, instead as a Clipper! If you look for the data sheet info, there are some references to PIN diode clippers. I have used the HSMP-3822-TR1G with success. They are about 1 Euro each (Farnell for example).
The IIP3 properties remain practically unchanged until the RF input signals reach -30 dBm or so (I do not have the exact figures at hand), then the IP3 properties degrade. But if you calculate the IIP3 from 2 signals that are below (approx) -30 dBm, the IIP3 remains around +4 dBm"

These diodes (Not in the schematic, but designated D3) can be mounted as shown in the picture below:

Parts List 144/432MHz LNA

Common parts

Value          Designator  Type

1-16pF Trimmer  C2              AT5453, TL246   Johanson Air Tronic    Must be very high Q type

120p	        C9 		0805/1206

1nF		C4,C8,C13 	0805/1206

100nF		C6,C7,C10 	0805/1206

2,2µF		C12 		1206

2.2µF		C11 		1206
10nF 		C14 		0805/1206

10R		R9 		0805/1206

12R		R7,R12 		0805/1206

22R		R6 		0805/1206

56R		R8 		0805/1206

100R		R1 		0805/1206

150R		R10,R11 	0805/1206

47R		R14 		0805/1206

1k		R3,R5 		0805/1206

1k8		R4 		0805/1206

10k		R2 		0805/1206

1N4148		D1,D2 		1808 		Any Si-diode will do

BAR64-04W	D3 		SOT-23 		Optional

ATF-54143	Q1 		SOT-343

BC857b		Q2 marked 3Bp	SOT-23

7805		U1 		TO-220

100µH		L3, L6, L7 	1810 		Exact value not critical
PCB 		LNA-4 		34,5X53,5 mm
BOX 		B1 		30x37x55 mm
”N” 		J1,J2 		Female small flange(or female/male)
PCB LNA-4

144MHz
10p 		C1 		NP0 leaded
10p 		C5 		NP0 leaded
6nH 		L4, L5 		1,25 turn 3mm/0,8mm Cu 		(Inside Dia/Wire Dimension)
12nH 		L2 		1,25 turn 3.5mm/0,8mm Cu 	(Inside Dia/Wire Dimension)
35nH 		L1 		2,5 turn 10mm/2,5mm CuAg 	(Inside Dia/Wire Dimension)

432MHz
3p3 		C1 		NP0 leaded
0p 		C5 		Not used
2nH 		L4, L5 		0.8mm Cu very small "U" ~½turn
4nH 		L2 		0,8mm Cu (See photo)
12nH 		L1 		2,5mm CuAg (See photo)


Gerber files, Gerber version "RS2.74x"
Download Gerber files here!
The original  Dubus article is here: Part one and Part two   with permission of DUBUS-Magazine!

The original PA3BIY Build notes

An example of how to integrate it in a real world system can be seen here.
